ADA Compliant Grating

These gratings are “ADA Compliant” and can be made to fit most loading applications.

We offer grating that conforms to the Americans with Disabilities Act (ADA) requirements. All ADA compliant grating we manufacture is assembled using specially made jigs and fixtures to ensure the openings between the bearing bars do not exceed 1/2”. Multiple options are available to meet most requirements.

Recommended for Short Spans Up to 3 Feet

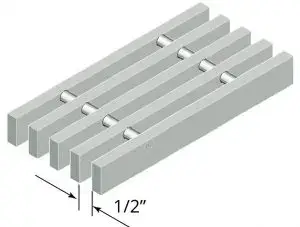

  • 14W4 Wheel-Safe
  • 3/8” Thick Bearing Bars
  • 1/2” Clear Opening

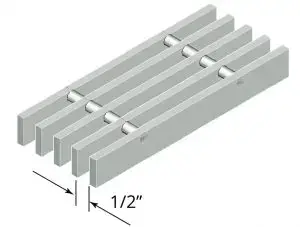

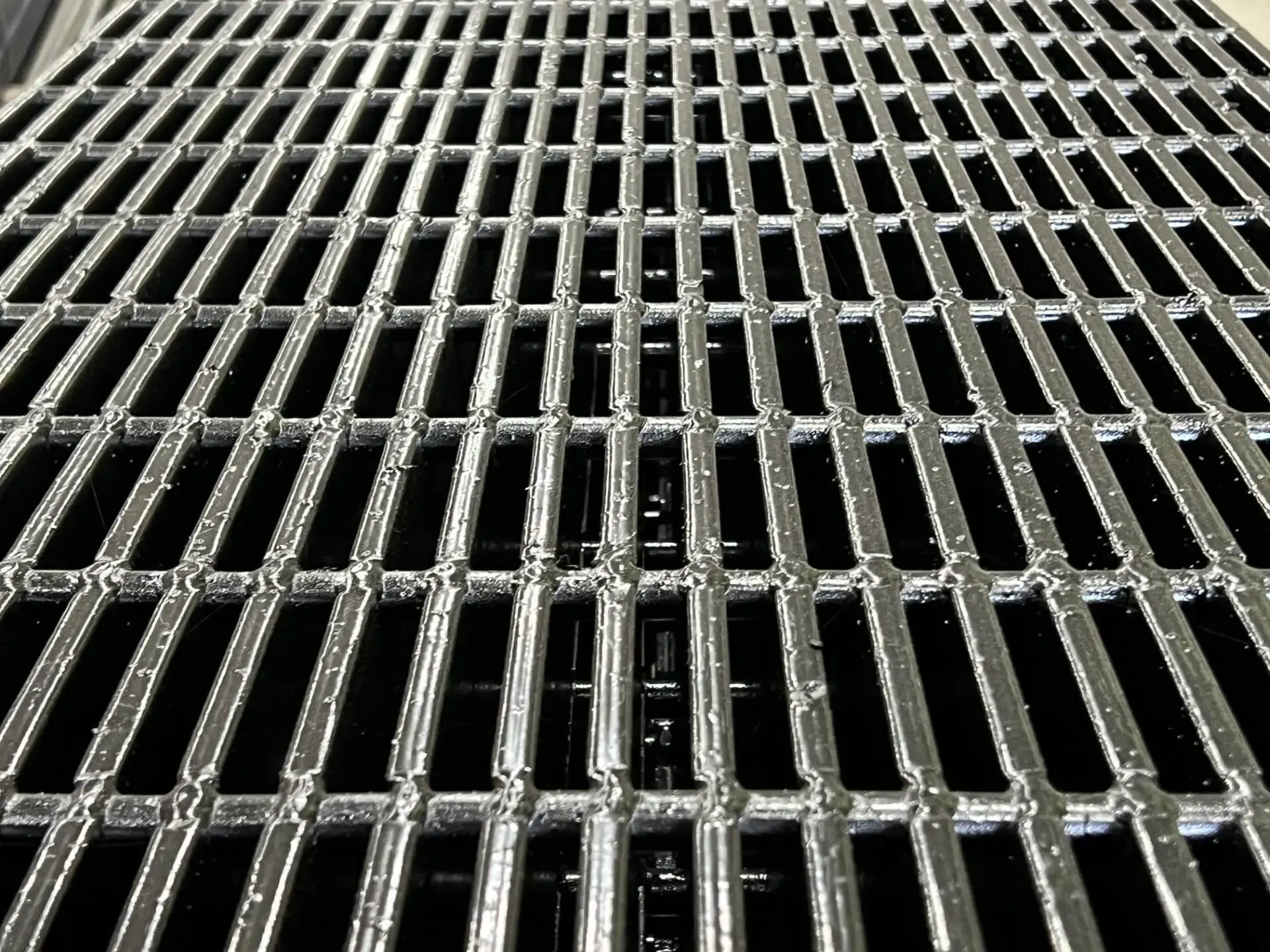

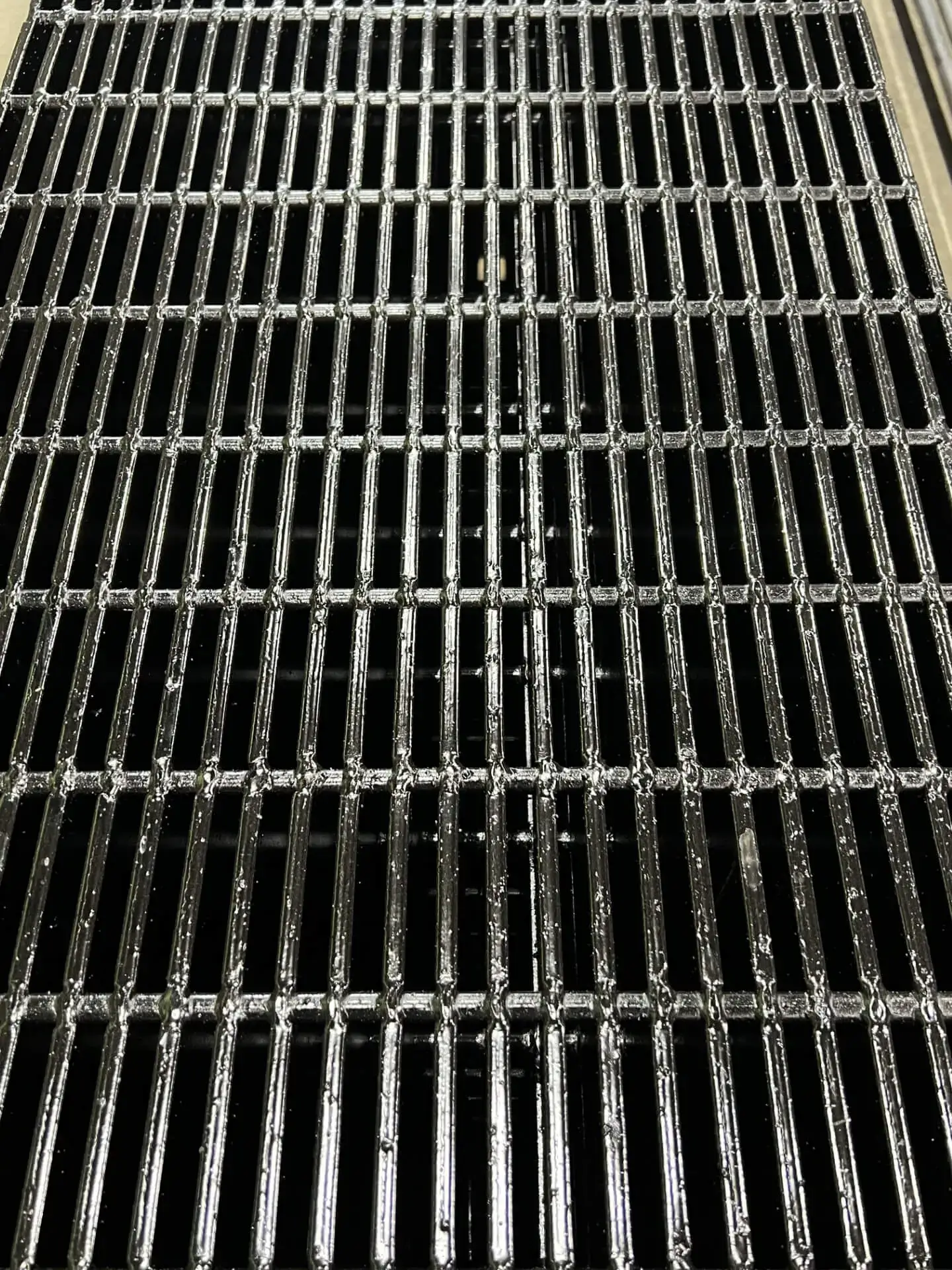

  • 12W4 Wheel-Safe
  • 1/4” Thick Bearing Bars
  • 1/2” Clear Opening

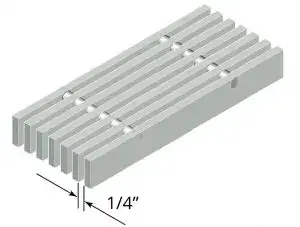

  • 8W4 Heel-Safe
  • 1/4″ Thick Bearing Bars
  • 1/4″ Clear Opening

Recommended for Longer Spans Up to 8 Feet

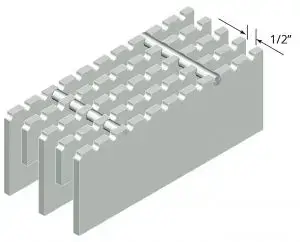

  • 24W4 Wheel-Safe
  • 1/4” Thick Bearing Bars
  • 1/2” Clear Opening
  • Serrations are Optional

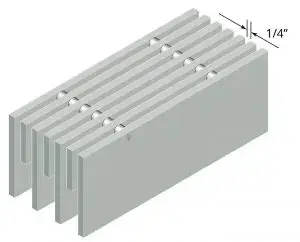

  • 16W4 Heel-Safe
  • 1/4” Thick Bearing Bars
  • 1/4” Clear Opening
